Liquifog - Piezo cavitation nebulizer
Ultrasonic cavitation nebulizers for disinfection and humidification
- Ultra-fine aerosols via piezoelectric ultrasonic technology
- Energy-efficient operation
- Silent nebulization
Ultrasonic nebulizers from HOERBIGER enable precise and energy-efficient aerosol generation for a wide range of applications. Their compact design, quiet operation, and low maintenance requirements make them ideal for integration into systems for air humidification, disinfection, or salt nebulization in Spa areas .
Liquifog
Short profile
The robust Liquifog cavitation nebulizer is used to create aerosol with higher output rate primarily in inustrial applications.
Technical data
- Function:
- Cavitation nebulizer
- Nebulizing capacity:
- up to 0.5 l/h
- Most frequent droplet diameter:
- 3 µm
- Operating frequency:
- 1.6 MHz
- Supply voltage:
- 24V DC
Download
Liquifog

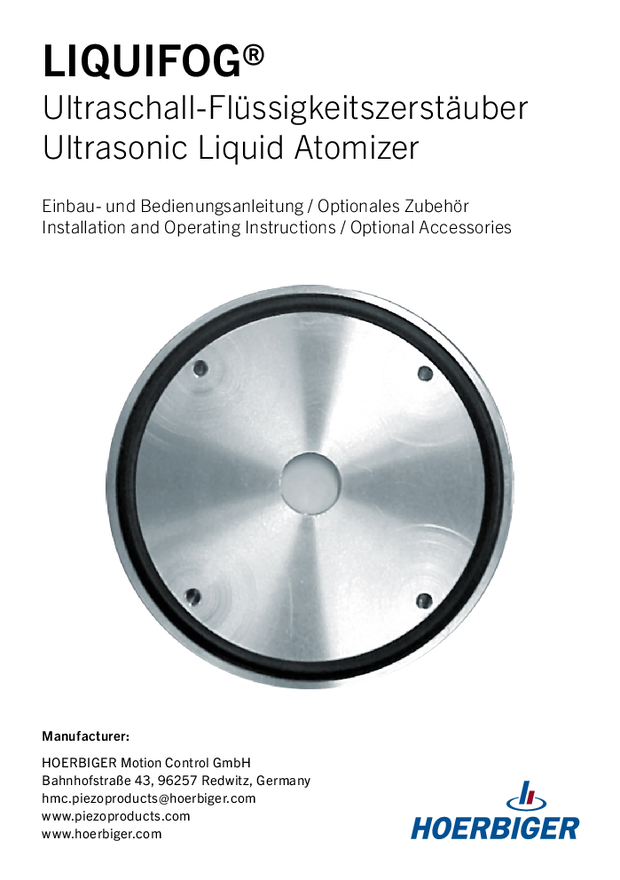

Installation and Operating Instructions
Download now
PDF document
- 384 KB
