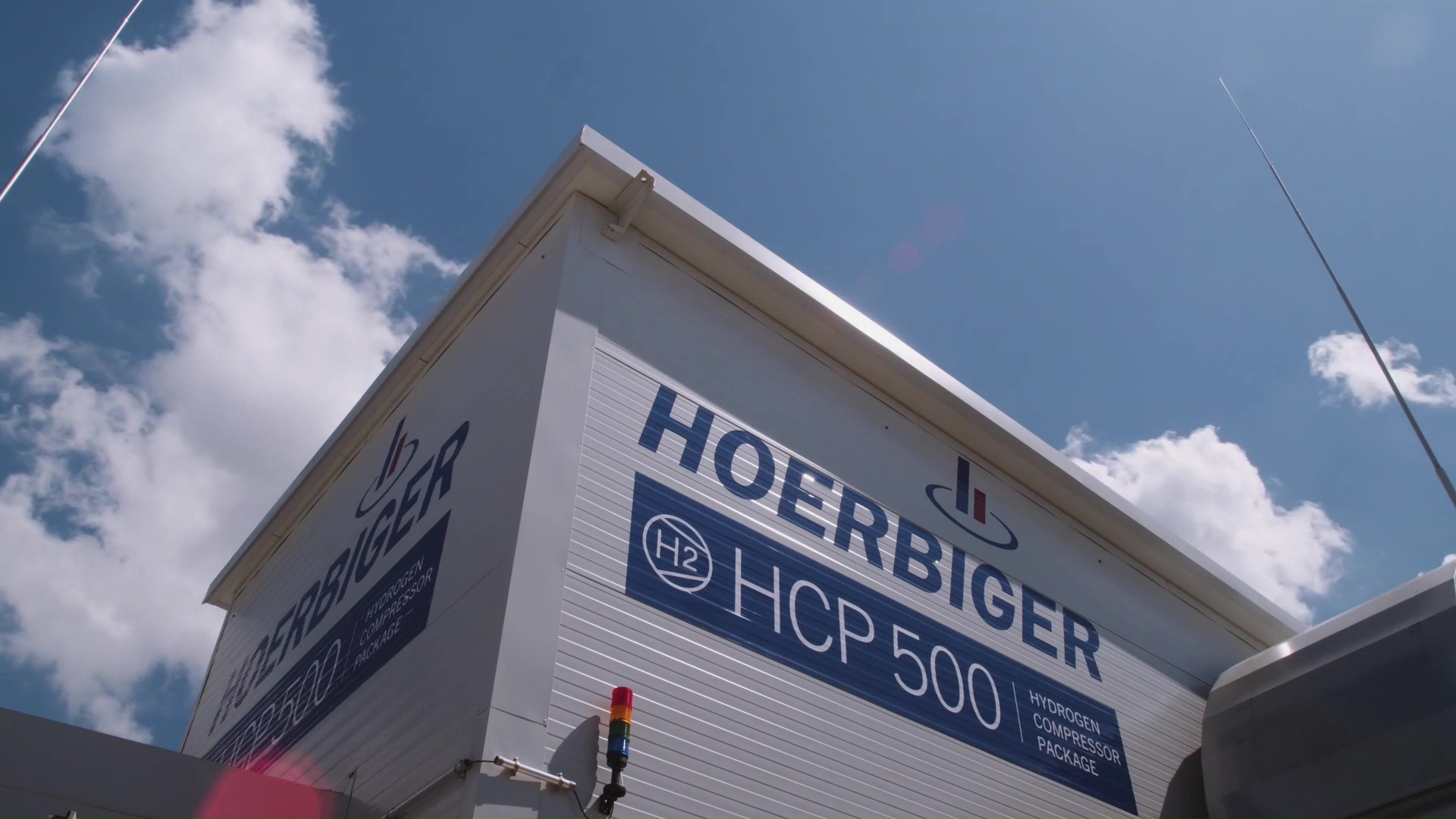

HCP 500 – Hydrogen Compressor Package

HCP 500 – Hydrogen Compressor Package

Achieve high mass flow hydrogen compression

Hydrogen is a key element in the green energy transition by significantly contributing to the decarbonization of the industry. To allow wide use of hydrogen the equipment must evolve into industrialized and efficient solutions, enabling you to meet your total cost of ownership expectations for hydrogen compression. Our technology provides you with the most cost-effective and reliable high-pressure hydrogen compression solution on the market. One standardized compressor package that can operate with different kinds of hydrogen supplies.

H2 Trailer Filling
Transport and Storage

The transport and storage of the molecule will be a central issue of the future hydrogen economy, regardless of the type of transport and subsequent storage. The HCP 500 is a compressor solution that enables flexible filling and withdrawal of hydrogen from a wide variety of sources, enabling efficient transportation and storage solutions for hydrogen applications. The standardized but application-tailored compressor package from HOERBIGER allows the extraction of hydrogen for:

  • Pipelines
  • Trailers
  • Storage cylinders
  • Cascade storage tanks
  • Electrolysers
Hydrogen mobility
Refueling

Refueling Solutions for hydrogen refueling stations will play an important role in the energy transition of heavy-duty vehicles. With the HCP 500 we are providing a cost-efficient compression package that is purposely designed to meet technical requirements of applications in hydrogen refueling stations for:

  • Trucks
  • Busses
  • Trains
  • Ferries

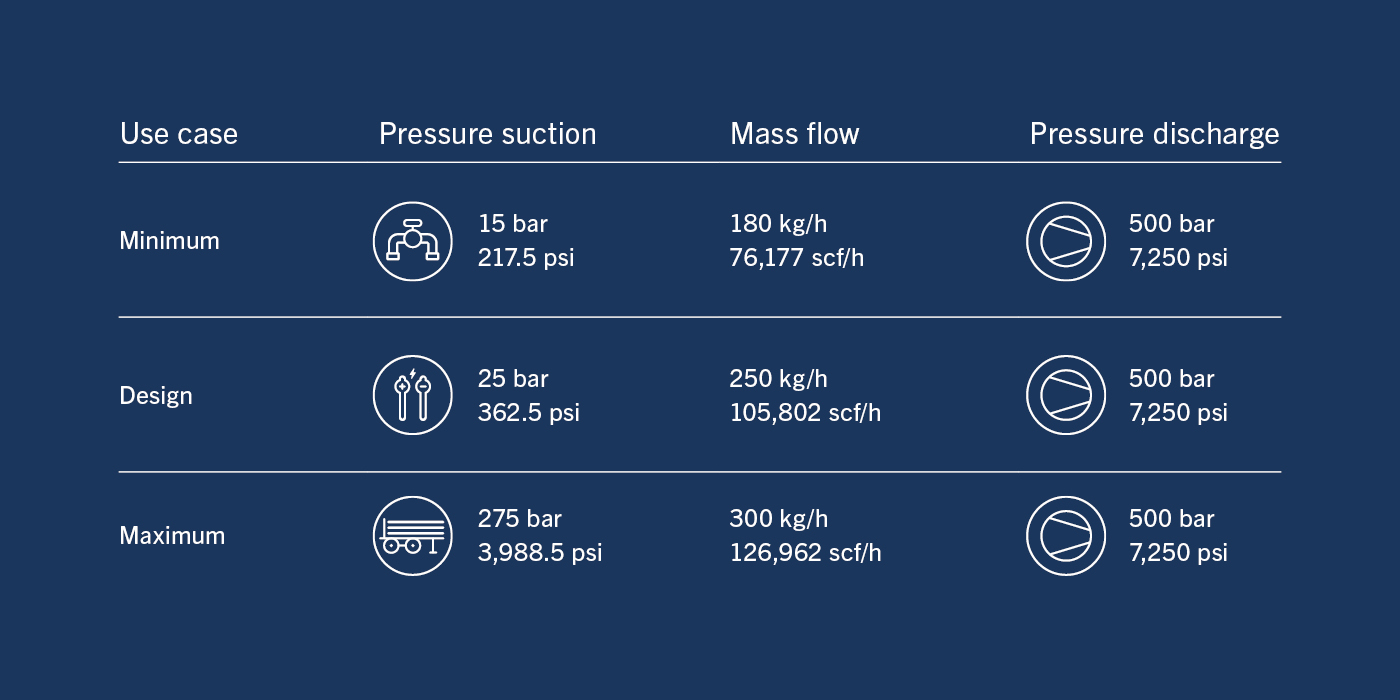

Use cases

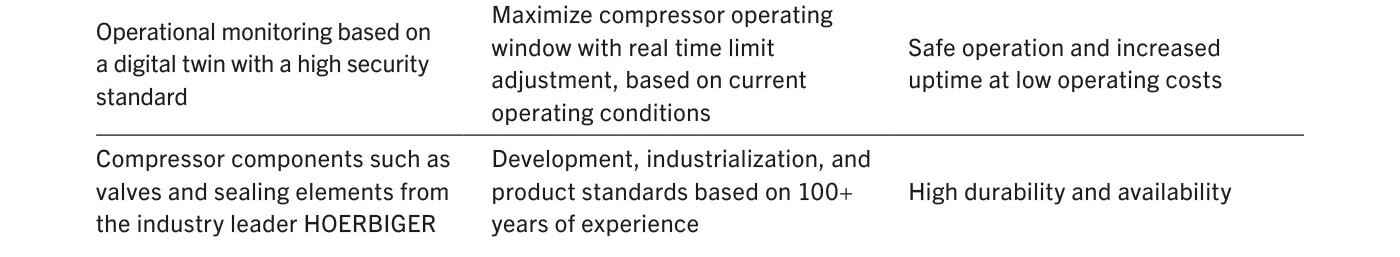

Your benefits at a glance

Less compressors, fast fill / short refill time, less buffer storage / high pressure
Feature

Maintains high mass flow rates even with low suction pressure, starting at 15 bar / 217.5 psi

Advantage
Precise and flexible process control
Feature

eHydroCOM included

Advantage
Energy efficiency and saving costs especially at part load operations
Feature

eHydroCOM included

Advantage
Increased compressor availability and efficiency
Feature

Packaged turnkey solution with high standardization degree, supported by global service organization

Advantage
Reduced costs
Feature

Compact design due to vertical recip

Advantage
Increased uptime & optimized OPEX
Feature

Incorporates a flexible and efficient digital twin software system with high security standards

Advantage
Minimized downtime and enhanced operational efficiency
Feature

Utilizes industry-leading HOERBIGER components for superior performance and reliability

Advantage
HCP 500 – Hydrogen Compressor Package at a glance:
Technical data
Suction Pressure – Compressor:
25 bar
Discharge Pressure:
500 bar
Mass Flow:
>250 kg/h
Mass Flow Regulation (energy efficient):
30 … 100 %
Mass Flow Regulation (technically):
0 … 100 %
Space Requirements:
~72 m2
Certification:
CE / ATEX
FAQ
Is the compressor oil-free (i.e., non-lube)?

Yes, the compressor is oil-free. We guarantee that the wear of our sealing elements doesn’t degrade the quality of H2.

What is the footprint of the Hydrogen Compressor Package?
What is the suction pressure and discharge pressure for the Hydrogen Compressor Package?
What is the mass flow of the Hydrogen Compressor Package?
How quickly does the compressor respond to load changes?
What design guidelines and engineering standards have been followed?
What safety and reliability standards have been followed?
Do you provide maintenance service of the Hydrogen Compressor Package?

Components used for the Hydrogen Compressor Package

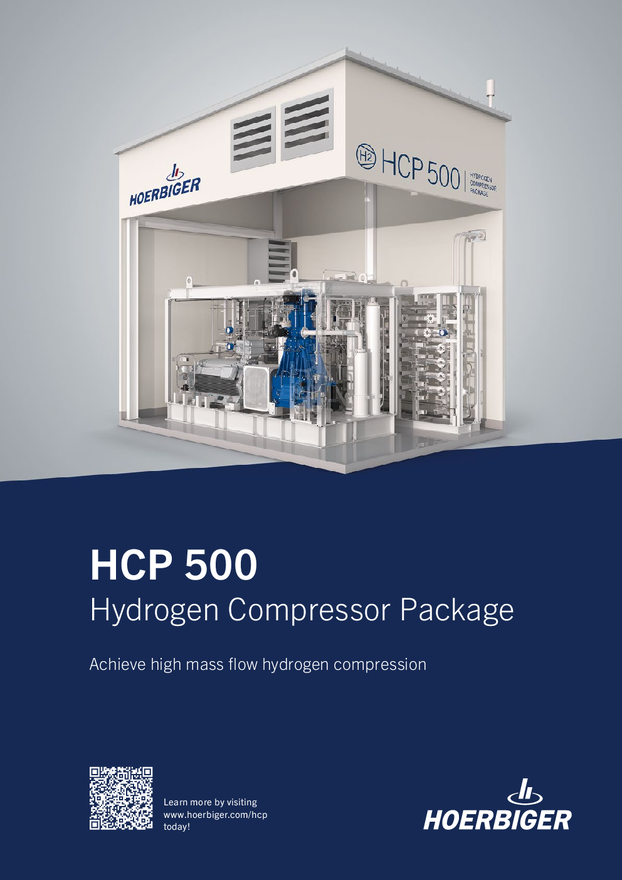

HCP 500 — Hydrogen Compressor Package

A4 Format

Download now
PDF document
- 185 KB

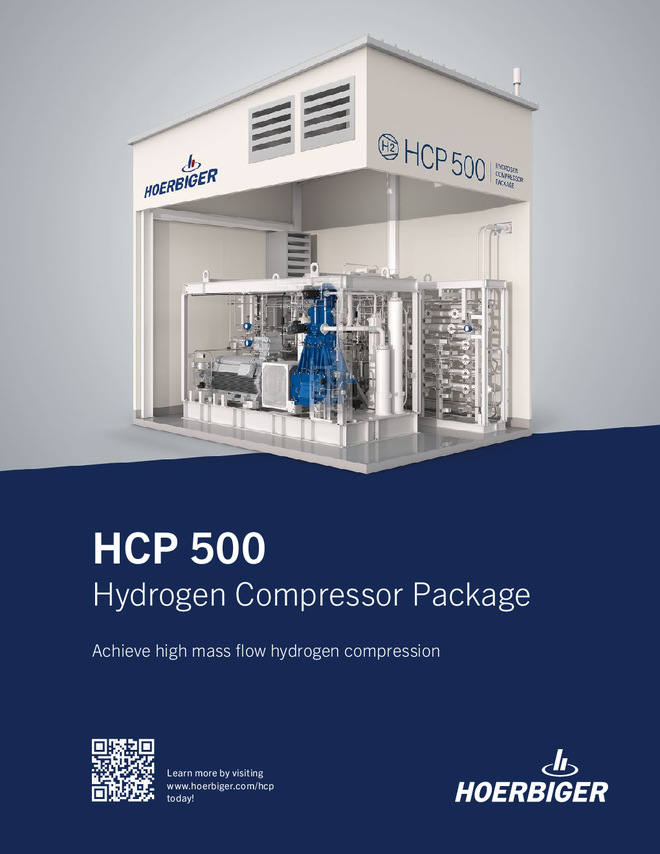

HCP 500 — Hydrogen Compressor Package

Letter Format

Download now
PDF document
- 189 KB
